QWZ Submersible Sand Dredging Pump

产品名称:

QWZ Submersible Sand Dredging Pump

Affiliate classification
Details

1.General introduction:

   QWZ series submersible slurry pump are developed based on the advanced technology from abroad by our company and be widely used for disposing the slurry, this kind has below advantages : high efficiency, saving power, circumvolution proof etc. The slurry, sullage and sand dredgingwith solid grain can be pumped by QWZ series pump.

2.Working condition:

  The PH 4-10;

  Max diameter of suspended solid over φ25-φ125mm;

  Max density is less than 1300 Kg/m3 ;

  The times of startup is less than 6-times per hour;

  The temperature of pumping medium is not higher than 40°C.

3.Scope of application of products:

  Motor power :200~660V3KV6KV10KV...

  Capacity:50~3000m3/h

Head:5~30m

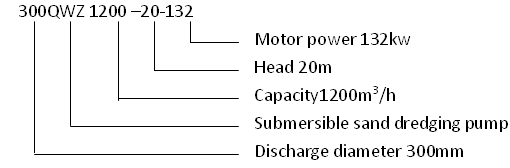

4.Type and Code:

Corresponding parameter set not found, please add it in property template of background
